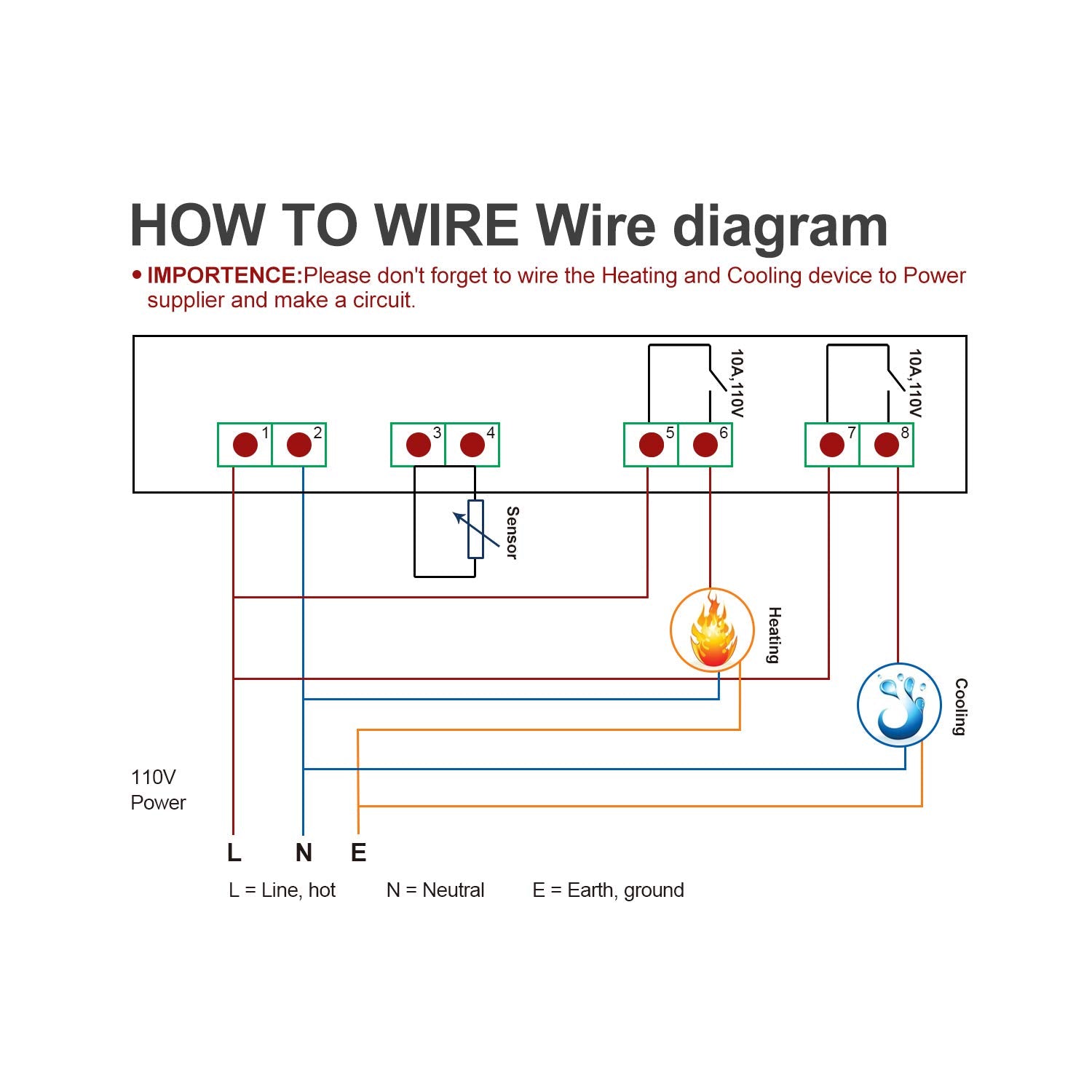

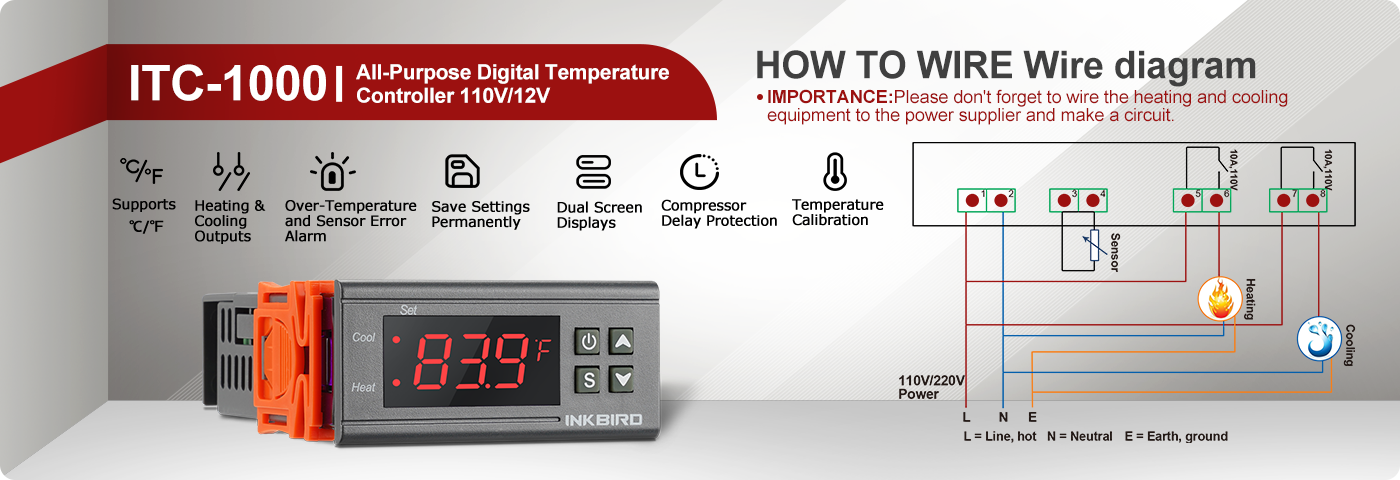

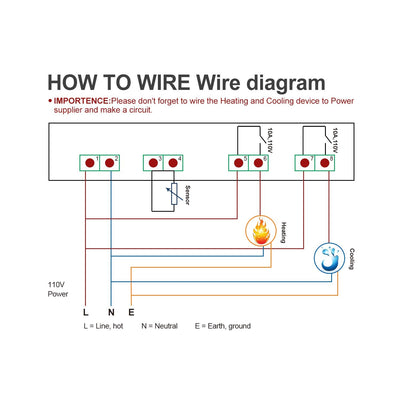

Inkbird ITC-1000 Wiring Guide

INKBIRD

Controlador de Temperatura ITC-1000

€19,99
Estilo
Estilo: 12V
Free Shipping
30-Day Easy Return
1-Year Warranty
Key Features
  • Dual Relay Output: Simultaneous cooling and heating control
  • Precise Temp Settings: Adjustable target and differential values
  • Alarm System: Alerts for over‑temp or sensor errors
  • Temperature Calibration: Fine‑tunes accuracy
  • Compressor Delay: Prevents short cycling and damage
  • DIY‑Friendly: Easy to install and operate
  • Wide Use: Reptiles, brewing, fermentation, incubation, planting
Highlights
Specs
FAQ
Reviews

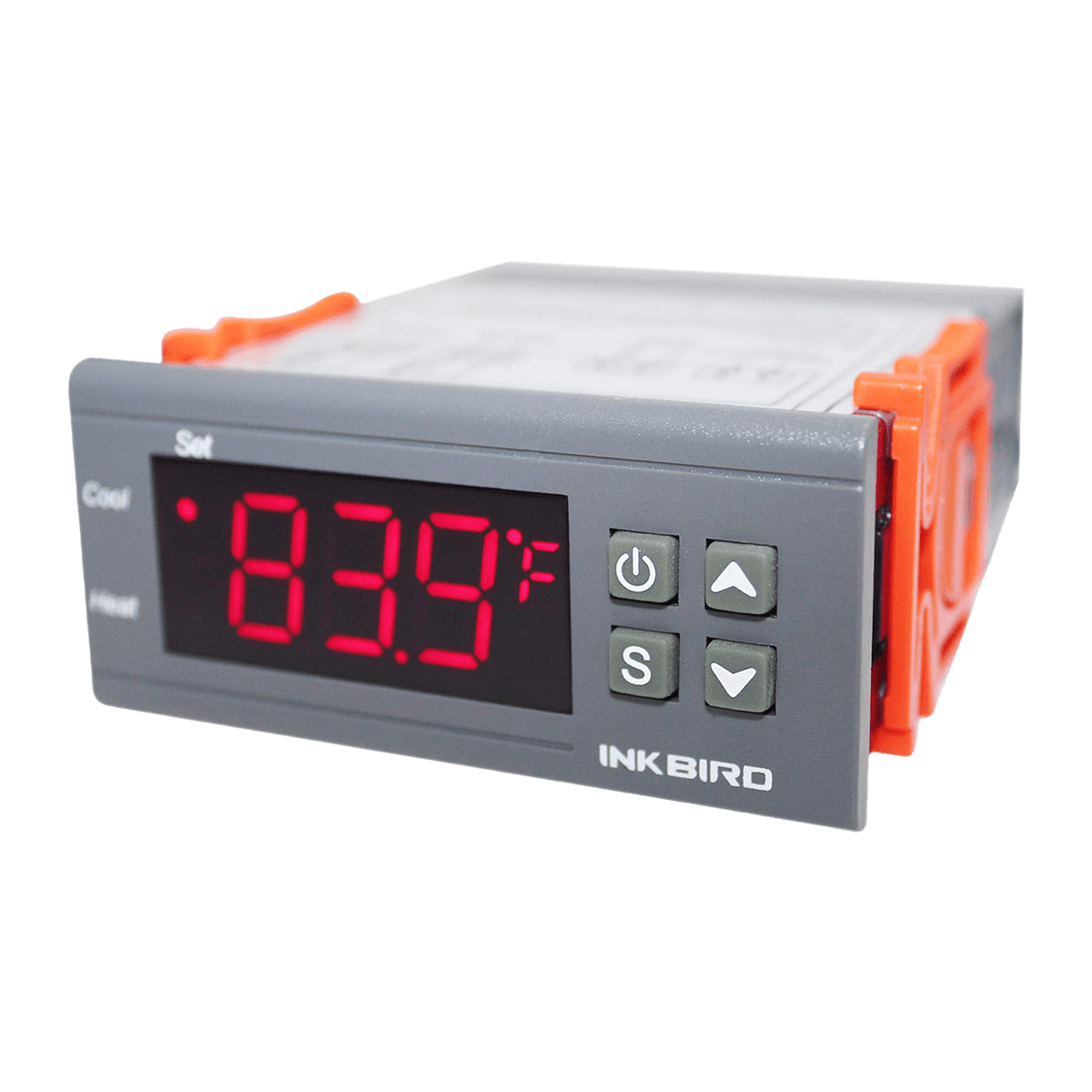

Automatic Dual-Stage Temperature Controller

The ITC-1000 accurately controls temperature by automatically turning your heating and cooling systems on or off based on the difference between the set temperature and the actual temperature.

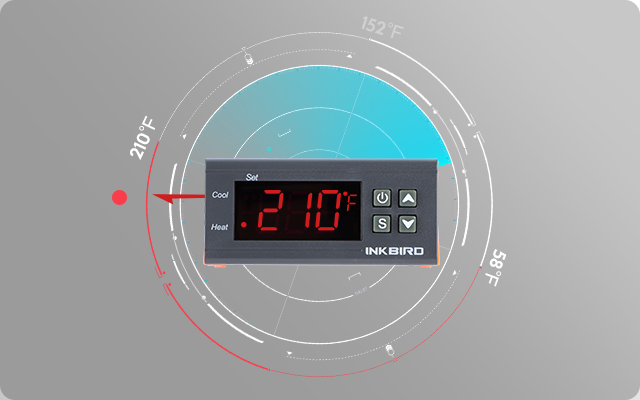

Over-Temperature Alarm

This PID temperature controller will sound an alarm if the temperature goes beyond its measurement range of -58~210℉ (-50~ 99℃), prompting you to take precautions to prevent any loss. You'll also get alerts if there is a sensor error.

Smart Protection for Your Appliances

ITC-1000 is equipped with output compressor delay protection with refrigeration control to minimize power loss and protect your home appliances such as air conditioners, freezers, and refrigerators.

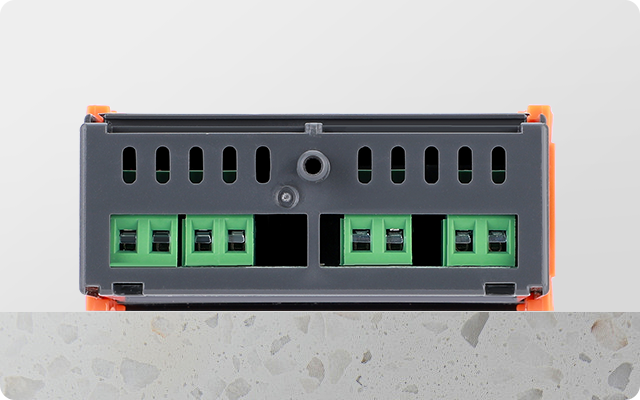

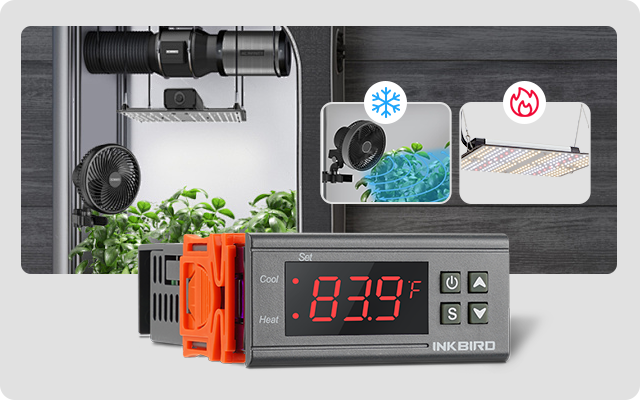

User-Friendly DIY Temperature Control System

ITC-1000 is easy to set up and use, making it perfect for DIY temperature control projects. Simply connect your cooling and heating devices to this PID temperature controller, and you'll have a fully automated system for managing temperatures in your home.

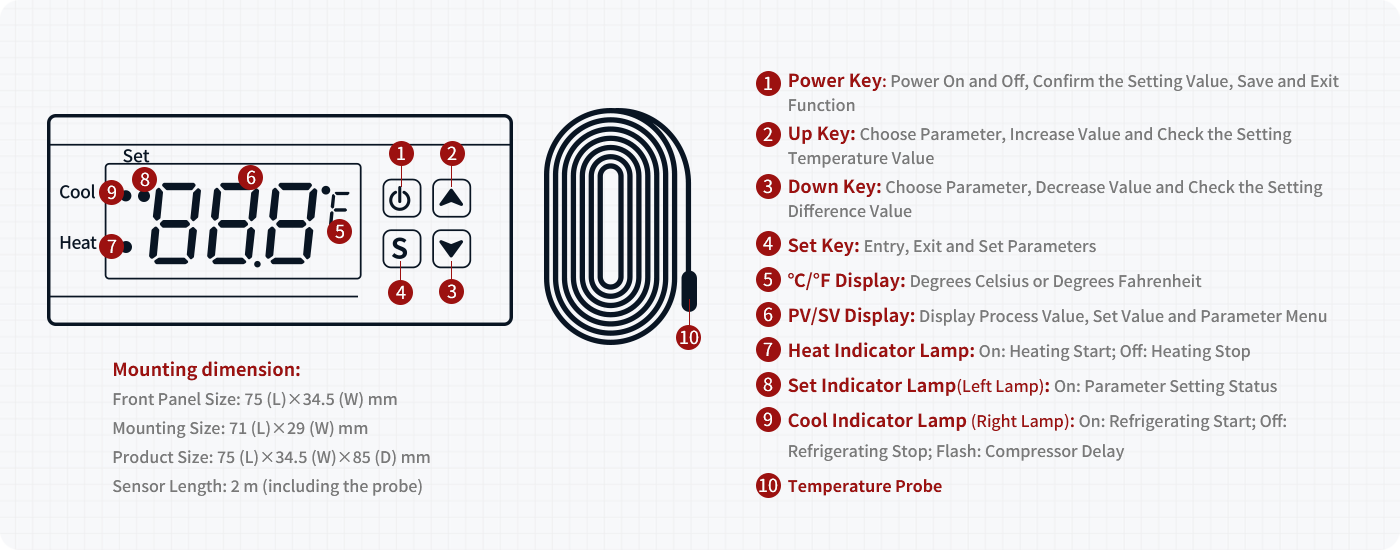

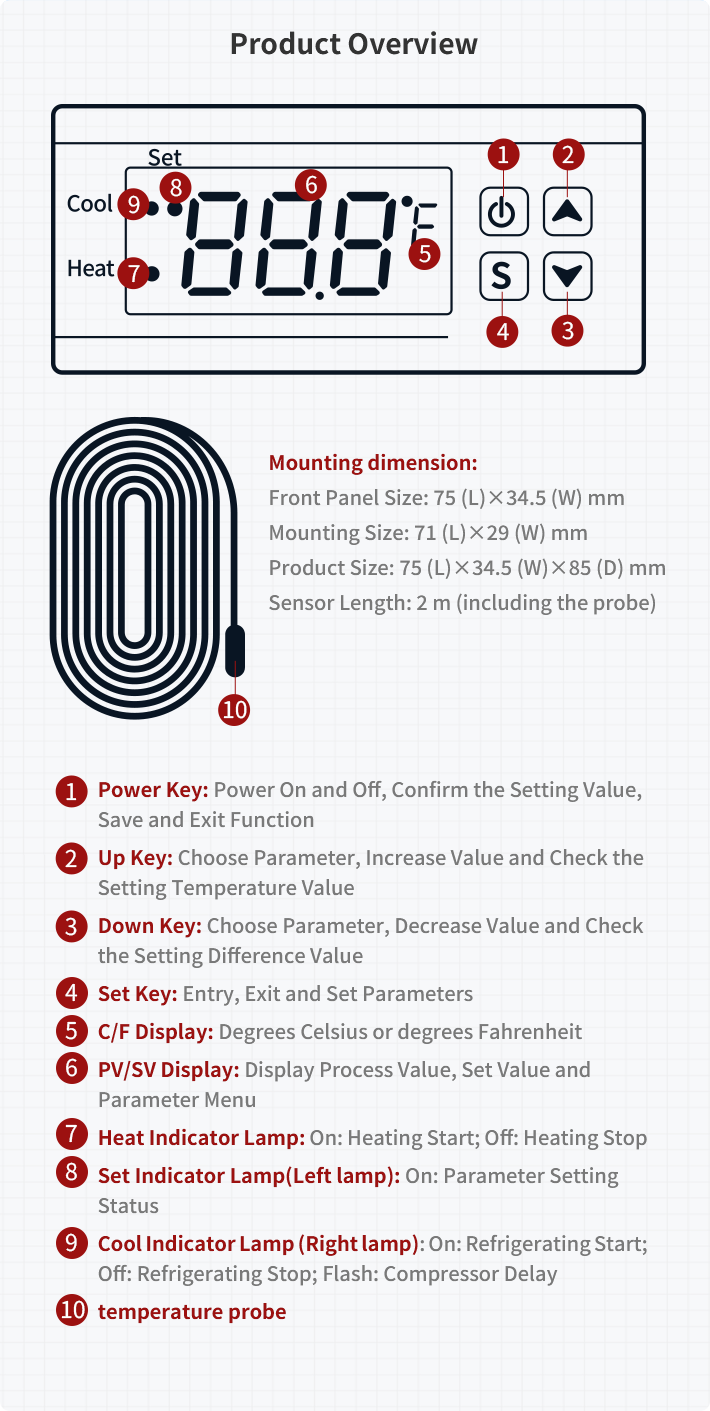

Product Overview



Specs

Model:

ITC-1000

Front Panel Size:
2.95 x 1.36 inches / 75 x 34.5 mm
Mounting Size:
2.79 x 1.14 inches / 71 x 29 mm
Product Size:
2.95 x 1.36 x 3.35 inches / 75 x 34.5 x 85 mm
Sensor Length:
6.56 ft / 2 m (include the probe)
Weight:
7.37 oz / 208 g
Power Supply:
110V AC/220V AC 50Hz/60Hz, 12V DC
Power Consumption:
<3W
Sensor:
NTC Sensor
Relay Contact Capacity:
Cooling (10A/250V AC) /

Heating (10A/250VAC)
Temperature Range:
-50°F~210°F / -50°C~99°C
Measurement Accuracy:
±1°F (-50°F~160°F) /

±1°C (-50°C~70°C)
Resolution:
0.1°F / 0.1°C
Ambient Temperature:
32°F~140°F / 0°C~60°C
Storage Temperature:
-22°F~167°F / -30°C~75°C
Relative Humidity:

20~85% (No Condensate)



Frequently Asked Questions

What is ITC-1000 used for?

The ITC-1000 is primarily used for temperature control in various applications, such as home brewing, fermentation, aquarium heating, reptile enclosure, indoor planting, incubators, and other industries requiring precise temperature management.

What warranty does INKBIRD offer for the ITC-1000?

INKBIRD offers a one-year warranty for the ITC-1000 PID temperature controller from the purchase date, covering defects in workmanship or materials when used under normal conditions.

Can ITC-1000 control more than one device?

Yes, the ITC-1000 features dual relay outputs, allowing it to control one heating and one cooling device at the same time. You can switch between heating and cooling modes depending on your specific requirements.

Is the ITC-1000 energy efficient?

Yes, the ITC-1000 is designed to optimize energy usage by efficiently controlling temperature, reducing power consumption while ensuring that processes stay within desired temperature ranges.

Can ITC-1000 be used outdoors?

While the ITC-1000 is not specifically designed for outdoor use, it can be used outdoors if protected from moisture, dust, and extreme temperatures. Make sure that the placement does not expose the unit to direct sunlight or water to maintain its functionality and longevity.
