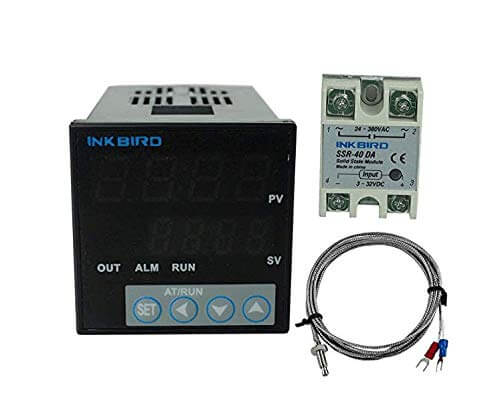

PID Temperature Controllers Thermostat ITC-106VH + K sensor + SSR + heat sink

Product features

• Support reading with Centigrade or Fahrenheit unit
• Dual display window, be able to display measured temperature and set temperature at the same time
• Simplify operational processes and you don't need to operate more steps if you want to set the definite value
• High accuracy of displaying and controlling. Manual and Auto turning are available
• 1 Year Warranty

Specification

• Front Panel Dimension: DIN 48mm(W)X48mm(L)
• Power Supply Voltage: AC 100-240V 50/60Hz
• Operating voltage range： 85～110% Rated voltage
• Power Consumption： Approx. 5VA（100～240VAC）
• Character: PV: 4 digital 9.9mm height Red LED Letters
• SV: 4 digital 8mm height Green LED Letters
• Display Accuracy: ±0.2%FS 0.1ºC（＜1000ºC）；1ºC（≥1000ºC）
• Period of Sampling： 0.5S
• Temperature Compensation： 0-50ºC
• Life expectancy of Relay: Mechanical≥10,000,000 operations Electrical≥10,000,000 operations
• Weight: Approx. 140g
• Environmental Conditions: -10～55ºC（no icy or condensation）, RH 35-85% Humidity
• Storage Temperature: -25～65ºC（no icy or condensation）
• Data Storage: 10year Cutout size: 45x45mm
• Mounting Method: Flush mounting and screw terminals

K-Type Thermocouple Temperature Sensing For Temperature Controller

• Temperature rang :0-400 C
• Sensor Dia: 4.5mm
• Cable Length: 2m(6.6ft)
• External Shielding: Insulated Shielding
• Internal Insulation:Fiberglass

25A SSR SOLID STATE RELAY for temperature controller
Specifications:
Load Voltage: 24-380VAC
Load Current: 25A
Input Voltage: DC 3-32V

40A SSR SOLID STATE RELAY for temperature controller
Specifications:
Load Voltage: 24-380VAC
Load Current: 40A
Input Voltage: DC 3-32V

Pacakge:
1x Inkbird ITC-106VH Controller
1x Mounting bracket
1 x K sensor
1x Manual
1x 25A/40A SSR (optional)
1x Black/White Heat Sink (optional)
